How We Solve Floor Plan to 3D, Accurately

Type "floor plan to 3D" into a search bar and you will find dozens of tools that promise a finished room from a drawing. Upload a plan, wait a moment, get a picture. The demos look great. Then you run one on a real project, and the walls sit in the wrong place, the kitchen is a foot too narrow, and the sofa is a model number that does not exist. The picture is pretty. It is also wrong. A wrong picture is worse than no picture, because someone makes a decision on it.

This is the problem we set out to solve at VirtualSpaces. Not "make a nice 3D image." Make a 3D room you can trust enough to spend money on. That turns out to be much harder than it looks, and the reason it is hard explains why most tools quietly fail on real work. This post is a semi-technical walk through the why and the how. I will keep the language plain and stay at the level of what each part does, because the parts that make it work are the parts we filed a patent on, and I will come back to that at the end.

A floor plan is a document, not a picture

Most people assume a floor plan is a picture of a home seen from above. It is not. A floor plan is a technical document. The information that matters is not in the shapes. It is in the notation: the small numbers running along each wall, the room labels, the door swings, the ceiling height noted in a corner, the scale bar at the bottom. A designer reads those numbers first and the lines second. Two plans can look almost the same and describe rooms that are three feet apart in size, because the difference lives in the text, not the drawing.

This changes the whole problem. If a floor plan were a photo, you could treat it as an image and let a model guess at depth and space. But it is a document with exact instructions, and the instructions are what make a room a room. Miss the instructions and you are decorating a guess.

The people who feel this most are the ones making real calls off the drawing:

• Interior designers pricing a project and presenting a look before a wall exists.

• Residential developers selling units off a blueprint, months before the building is finished.

• Architects who need the 3D to match the plan they drew, not a loose impression of it.

• Homeowners staring at 2D floor plans and unable to picture whether their furniture fits.

Every one of them needs the same thing: a 3D room that matches the drawing, not a mood image that merely resembles it.

The two ways the industry fails

Most tools that convert 2D floor plans to 3D take one of two shortcuts, and both break on real projects.

The first is the photo shortcut. Some tools need a photograph of the actual room to work from. That is fine if the home already exists and happens to be empty and clean. It is useless before a home is built, which is exactly the moment developers and designers need the visual most. You cannot photograph a room that is still a blueprint. An approach that only works after construction misses the whole pre-sales window.

The second is the guess shortcut. Other tools treat the plan as an image and let a generative model imagine the rest. This is where hallucination comes in. The model invents structure that is not in the drawing and furniture that is not for sale. You get a beautiful render of a room that cannot be built and a chair nobody can order. It looks like an answer. It is a guess wearing the costume of an answer.

Both shortcuts produce something you can look at. Neither produces something you can act on. The distance between "looks real" and "is correct" is the entire problem, and it is where the money is lost.

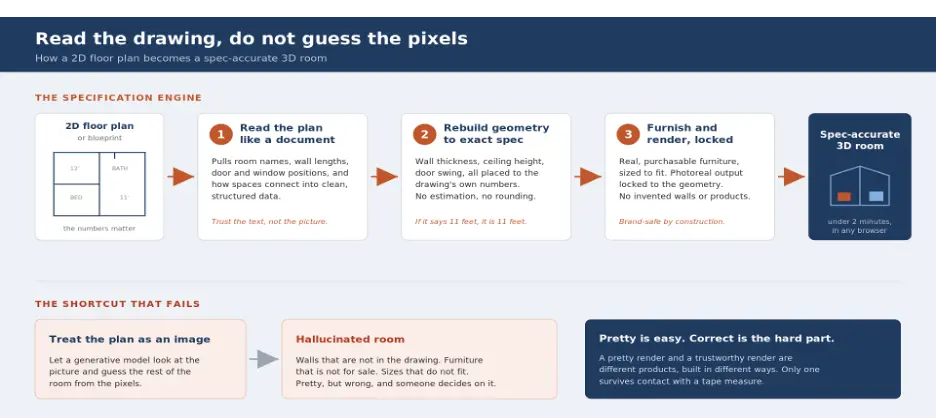

The core idea: read the drawing, do not guess the pixels

Our approach starts from one decision. Read the drawing the way a person does, and build from the numbers, not from the pixels.

That sounds obvious. It is not how most AI 3D visualization works, because reading a drawing is genuinely hard. The numbers are tiny. Formats change from country to country and from firm to firm. The same wall can be described three different ways on three different plans. Getting a machine to read blueprints and 2D floor plans reliably, across US and international conventions, took a trained system and a training set we had to build by hand over roughly a year. There was no off-the-shelf version to buy, and that is not an accident: the messy, inconsistent reality of how humans annotate drawings is most of the difficulty.

Once you can read the drawing, everything downstream changes. You are no longer guessing where a wall goes. You know, because the drawing told you, and you chose to trust the text instead of the picture.

How it works, in three steps

Converting a floor plan to 3D runs in three steps here. I will describe what each step does and stop there.

Step one: read the plan like a document. The first stage reads room names, wall lengths, door and window positions, and how the spaces connect. It pulls the dimensional text out of the drawing and turns it into structured data. Not "this looks like a bedroom," but "this is a bedroom, it is 12 feet by 11 feet, the door is here, the window is there." This is closer to reading a contract than looking at a photo. It is the foundation, and if it is shaky, nothing above it can stand.

Step two: rebuild the geometry to exact spec. The second stage takes that data and builds a precise 3D shell. Wall thickness, ceiling height, the depth of a window reveal, the direction a door swings: all placed to the drawing's own numbers. No interpolation. No rounding to something that looks close enough. If the plan says 11 feet, the wall is 11 feet. This is the difference between a model you can measure against and a model that only photographs well. Get this stage wrong and every render built on top of it inherits the error, quietly, all the way to the client.

Step three: furnish and render without making things up. The third stage gives the room its finishes, its light, and its furniture, and it is where most generative tools go off the rails. Ours is constrained on purpose. It furnishes from a live catalog of real products, so every item placed in the room is something a person can actually buy, sized to fit the space it sits in. The photoreal render is locked to the geometry from step two, so the system cannot quietly nudge a wall to make a nicer picture. The goal is to suppress two lies at once: invented structure and invented products.

That last part is the quiet hard part. It is easy to make a generative model produce a gorgeous image. It is hard to make it produce a gorgeous image that stays true to a real room and a real product you can order. Brand-safe output is not a filter you bolt on at the end. It has to be built into how the image is made in the first place.

Delivery matters as much as accuracy

Accuracy is only useful if people can reach it. So the whole pipeline runs in a browser, on any device, with no app to install and no render farm humming in the background, and it returns a photoreal room in under two minutes. A designer opens a link. A homeowner opens the same link. Nobody needs a workstation or a specialist sitting between them and the render. Speed and access are not side features here. A spec-accurate room that takes three days and an outsourced studio to produce is not much help in a client meeting that is happening right now.

Here is the contrast in one place.

Why this is hard to copy

A fair question: if the idea is "read the drawing, do not guess," why can't anyone do it? A few reasons, and here I will be honest about what we are not going to explain.

• The reading system was trained on a hand-built set of residential floor plan conventions that took about a year to assemble. That corpus is the kind of asset you cannot shortcut and cannot download.

• The method that ties the three steps together, from topology-corrected reconstruction, to matching real products against the room, to a final render that stays locked to the geometry, is the subject of a patent we filed. The priority date was secured in June 2026, with international filing to follow across more than 150 countries.

• The parts that actually make each step work are deliberately not in this post. They are also not spelled out in the public summary of the filing. That is by design.

We are describing the shape of the solution, not the mechanism. The shape is enough to see the real point: a pretty render and a trustworthy render are different products, built in different ways, and only one of them survives contact with a tape measure.

Why this matters beyond one render

Step back from a single room. Every home that gets sold, every unit a developer prices before it is built, every renovation a homeowner is nervous about, and every listing that sits empty is a place where a room you can trust changes the decision. The residential slice is the fastest-growing part of AI interior design, a market independent analysts size at roughly $3.3 billion in 2025 and expect to reach around $15 billion by 2033 (approximate, third-party estimate, verify at the source below). Those are not our numbers, and we would not ask you to take them as gospel. The direction is the point.

Underneath all of that demand sits the same hard problem, solved once: turn a 2D drawing into a room you can trust. Solve it well and it stops being a feature inside one design tool and starts looking more like infrastructure that many other things can run on. Virtual Staging for an empty listing, AI virtual staging for a developer's pre-sales, interior design renders for a pitch, a renovation preview for a nervous homeowner: different products on the surface, one engine underneath. The AI interior decor a homeowner plays with and the blueprint to 3D pipeline a developer relies on are the same machine, pointed at different people.

Where it shows up

Two products run on this today. Foursite turns floor plans and blueprints into photoreal interior design renders and virtual staging, without an outsourced render studio. Remodroom takes a single room photo and returns a photoreal redesign you can change in minutes. Different front doors, same idea behind both: the room you see should match the room that exists, or the room that will.

That is the whole bet. Not the prettiest picture. The most trustworthy one. Pretty is easy now; every tool can do pretty. Correct is the hard problem, and correct is the one worth solving.

Sources and Citations

Third-party facts:

• AI in interior design market size and growth: Grand View Research, "AI In Interior Design Market Size & Share Report, 2026-2033." Market estimated at approximately $3.28 billion in 2025, projected to reach approximately $15.0 billion by 2033, at a CAGR of approximately 20.9% (2026-2033); the residential end-use segment is the fastest growing at approximately 22.0% CAGR. Figures are third-party estimates; verify at source. grandviewresearch.com

Management statements (VirtualSpaces):

• Product capabilities (reading dimensional text from floor plans, spec-accurate parametric geometry, geometry-locked photoreal generation, live-catalog furnishing, and browser-native output in under two minutes), the roughly one-year training corpus, and the patent filing with a June 2026 priority date are statements from VirtualSpaces management and are not independently verified third-party facts.
